The REMCON

The remote control whole home ventilation system

The most effective method of condensation control for domestic properties.

EASILY INSTALLLED

in houses and bungalows

CONTROLS

Condensation, Mildew, Mould & Dampness

99 SPEED SETTINGS

Remote Control

LOW MAINTENANCE

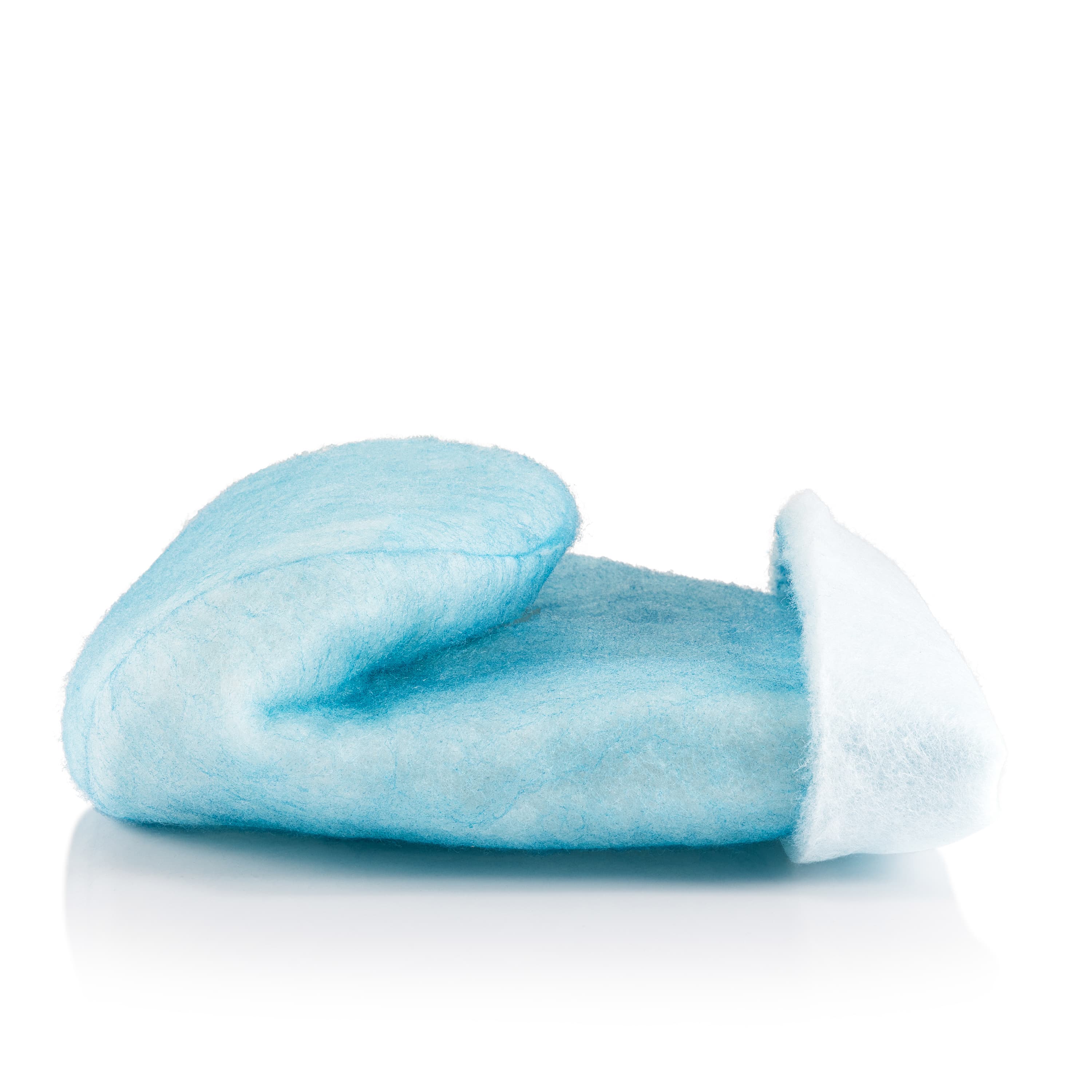

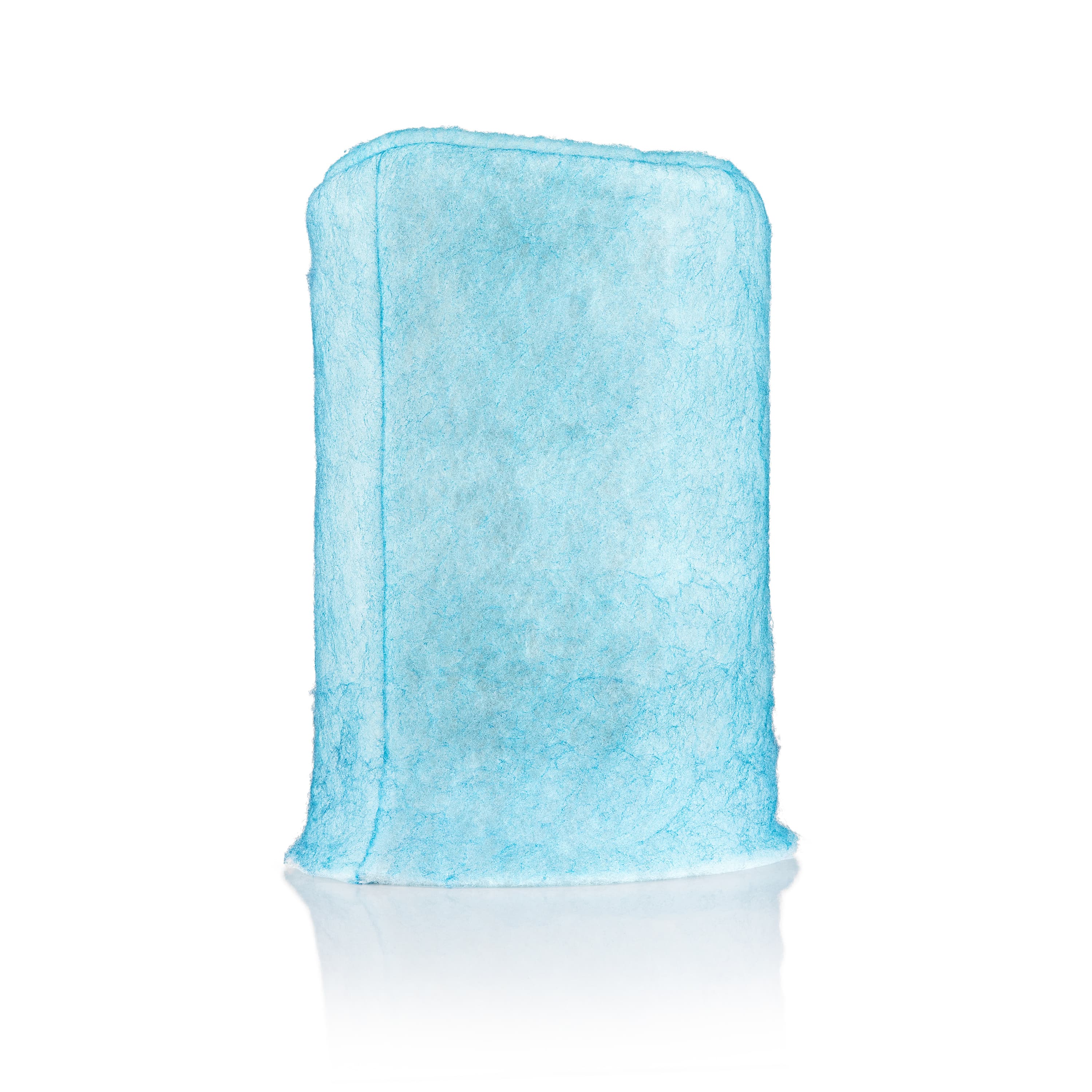

Low Cost filter maintenance annually

HEALTHIER

Provides a healthier way of living

ENERGY EFFICIENT

Low Running Costs, better utilisation of existing heating

5 YEAR WARRANTY

Peace of mind with a 5 year manufacturers warranty

WHISPER QUIET

When in operation

PATENTED DESIGN

FULLY COMPLIES

With 2010 Building Regulations

TAKE CONTROL OF CONDENSATION

Windows dripping condensation, water pooling on sills, damp curtains, black mould growth on walls and ceilings, mildew on clothing, musty smells... Welcome to a typical UK home in winter.

The REMCON whole home ventilation system discreetly banishes condensation from homes.

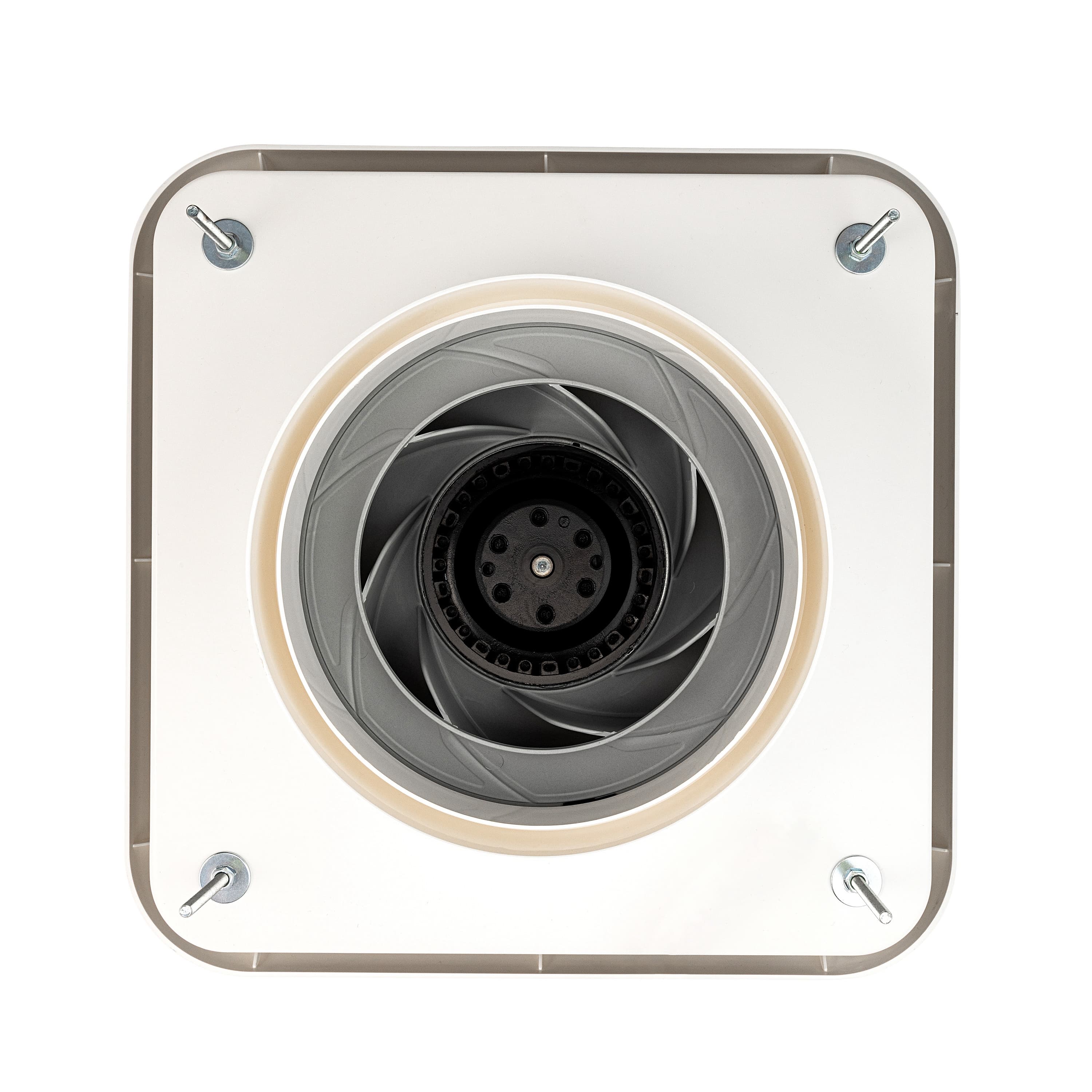

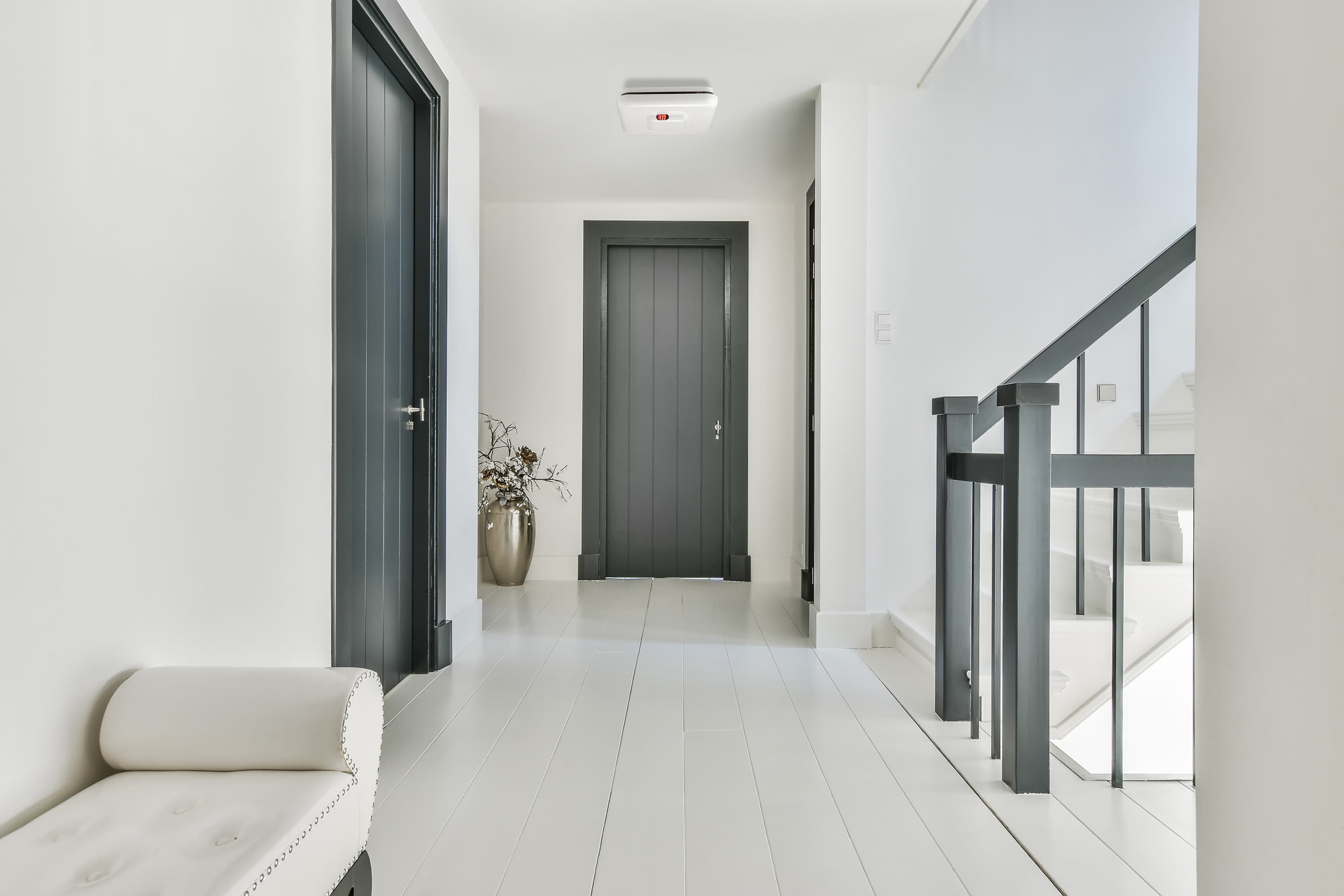

The system is installed in the roof space of the home, with an unobtrusive ceiling louvre that fits seamlessly with any home decor.

CONTROLS
Condensation, mildew, mould, and dampness.
HEALTH
Creates a fresher, cleaner living environment for you and your family.
ENERGY EFFICIENT
Low running costs, better utilisation of existing heating.
SECURITY
Extends the life of curtains, carpets, and paintwork.
SAVES TIME
Banishes morning windowsill mopping up.

PEACE OF MIND

The REMCON is whisper quiet, needs minimal maintenance, has a proven track record and is guaranteed.

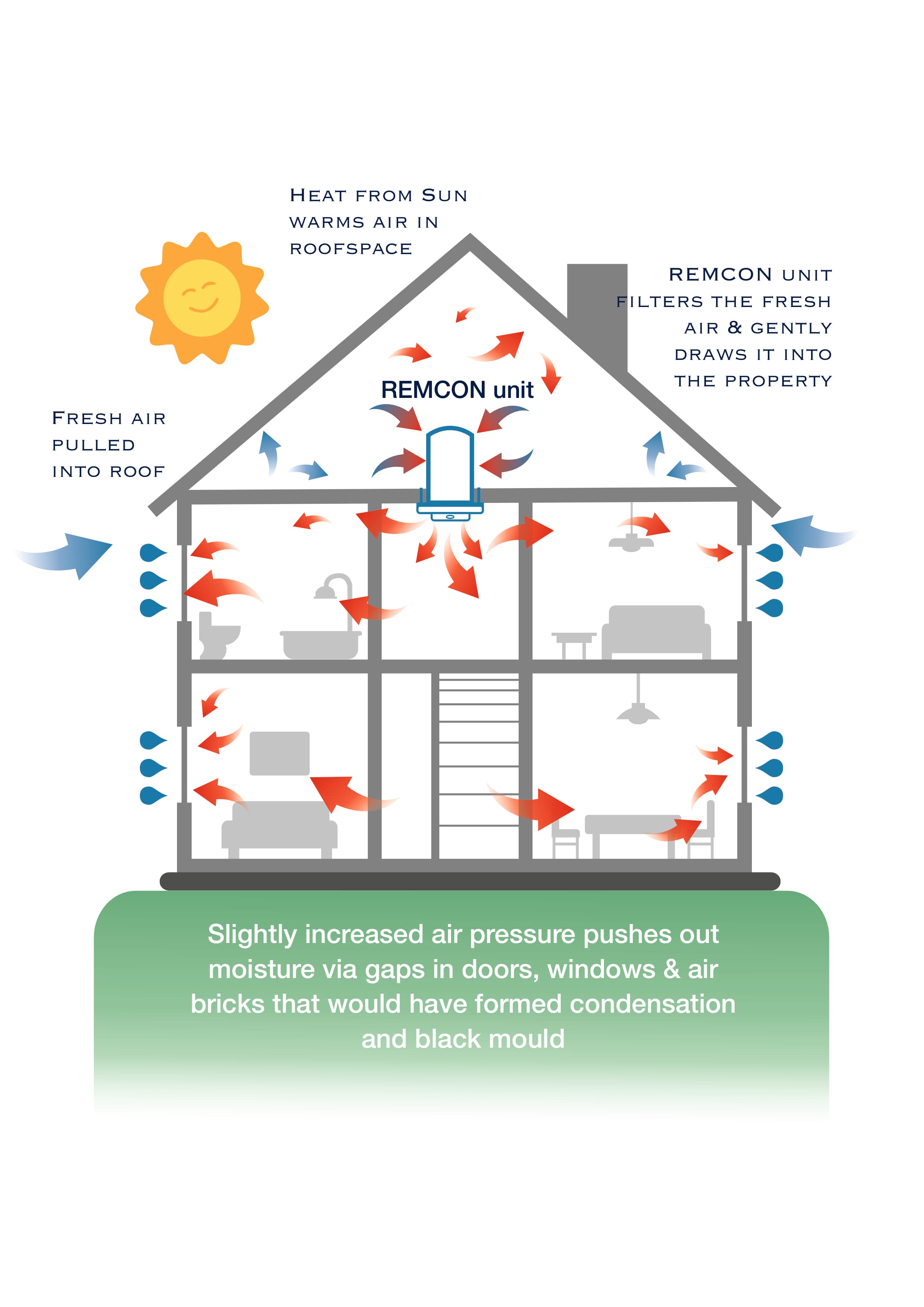

The REMCON is a true ventilation system that uses nature's fresh air to ventilate your entire home.

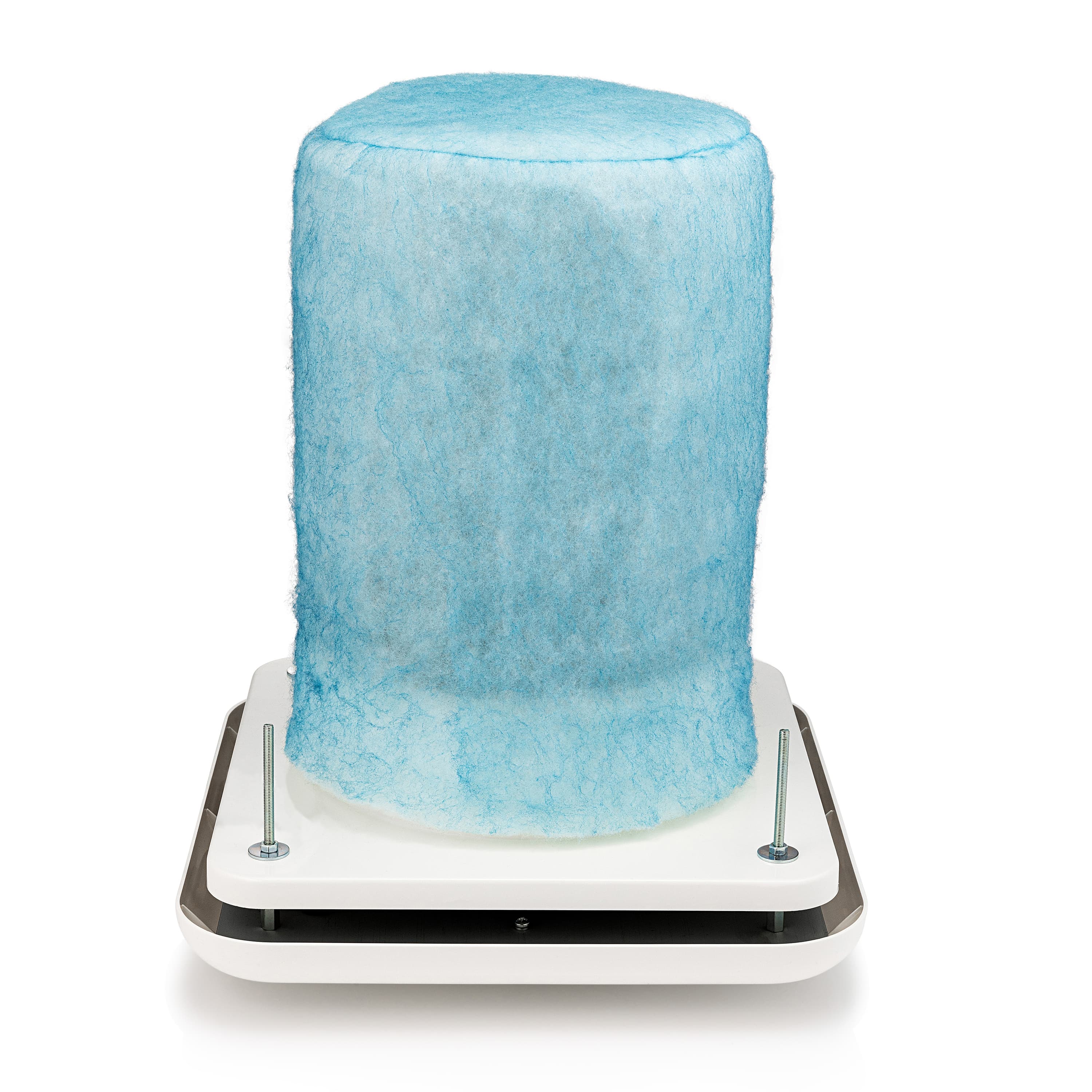

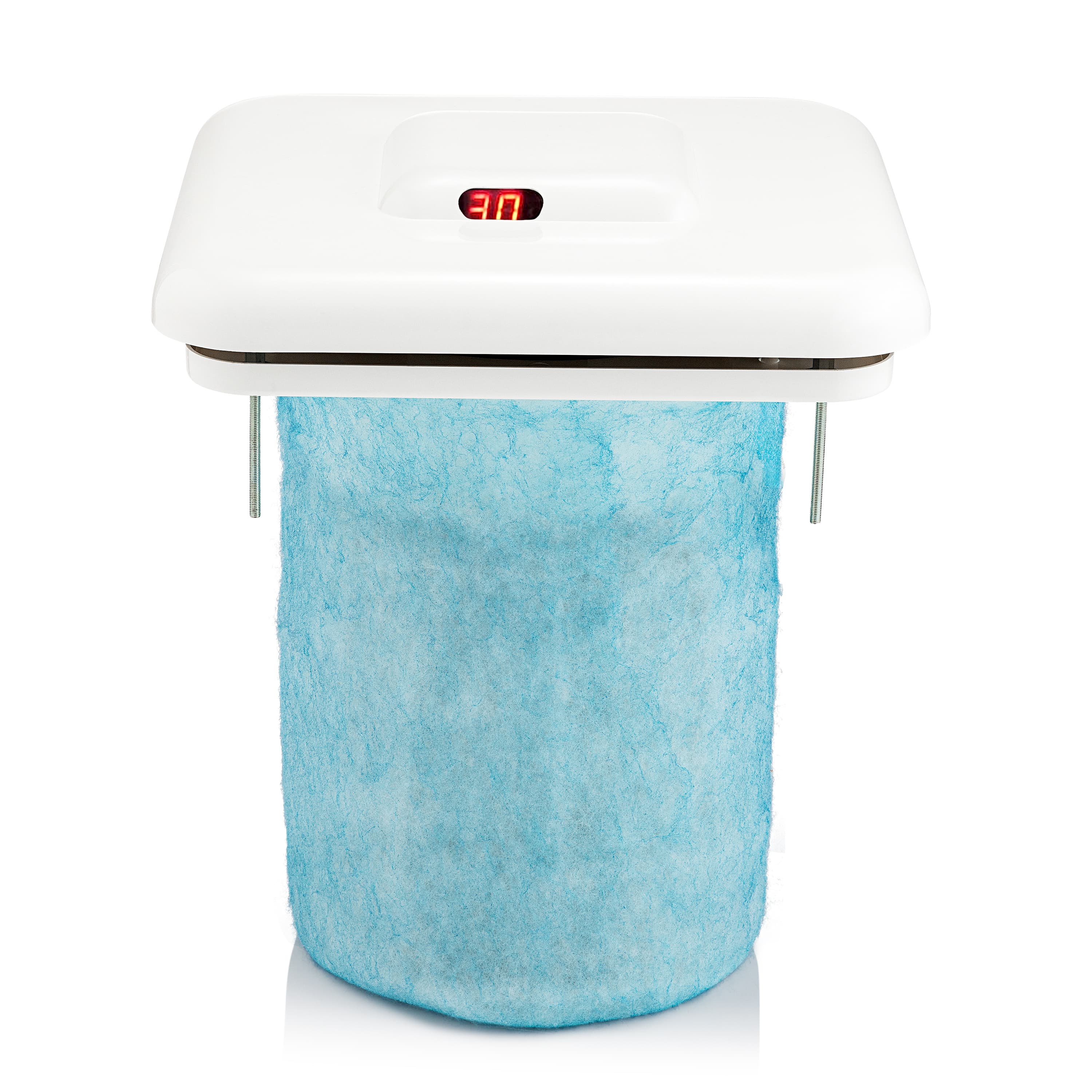

A ventilation system installed unobtrusively in the roof space of your property, gently introducing fresh, filtered air into the home.

THE DIFFERENCE IS CLEAR

This fresh air replaces the moist, damp air created by everyday living in the home. Unlike a conventional dehumidifier the REMCON is quiet, requires minimal maintenance, does not require daily emptying and is concealed in the attic.

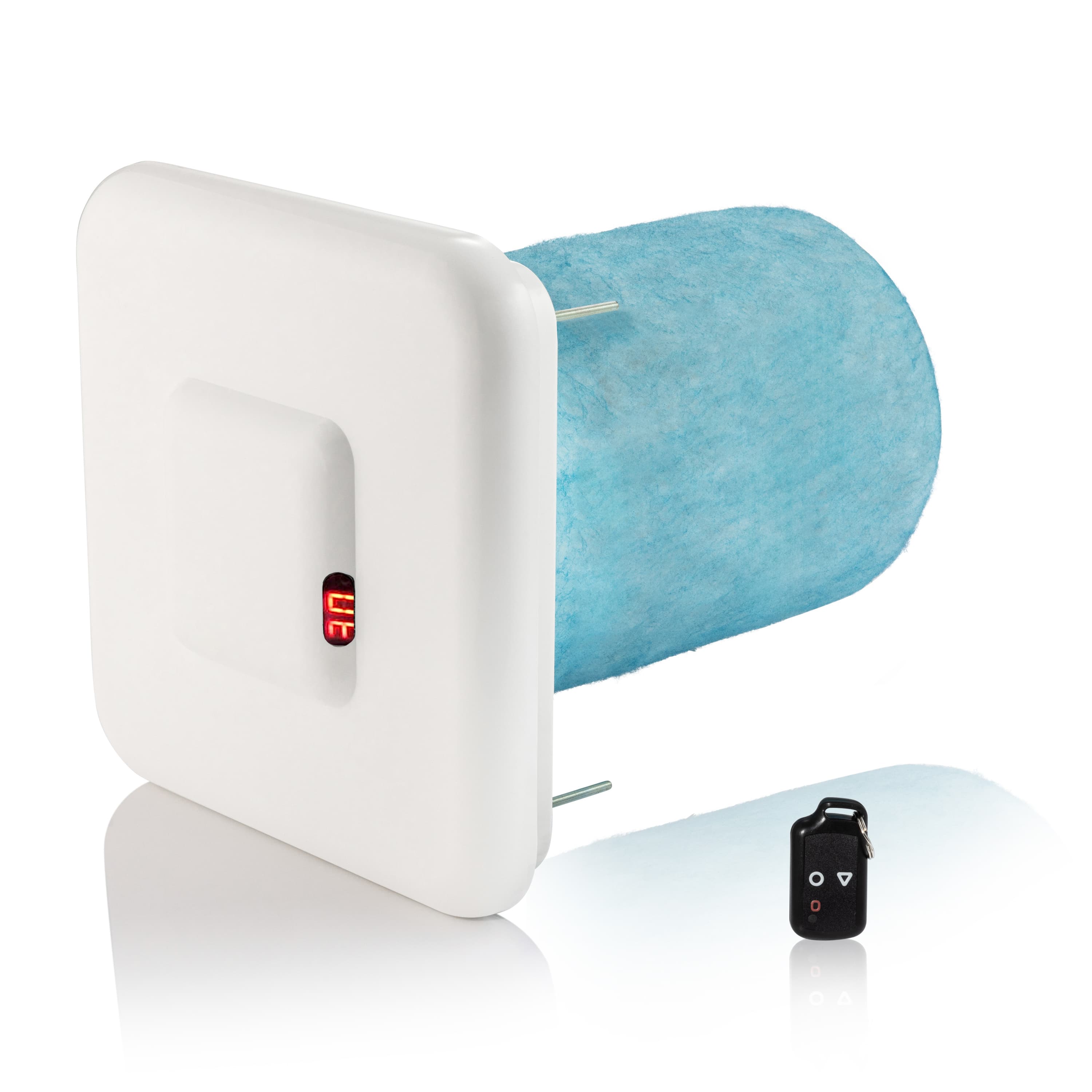

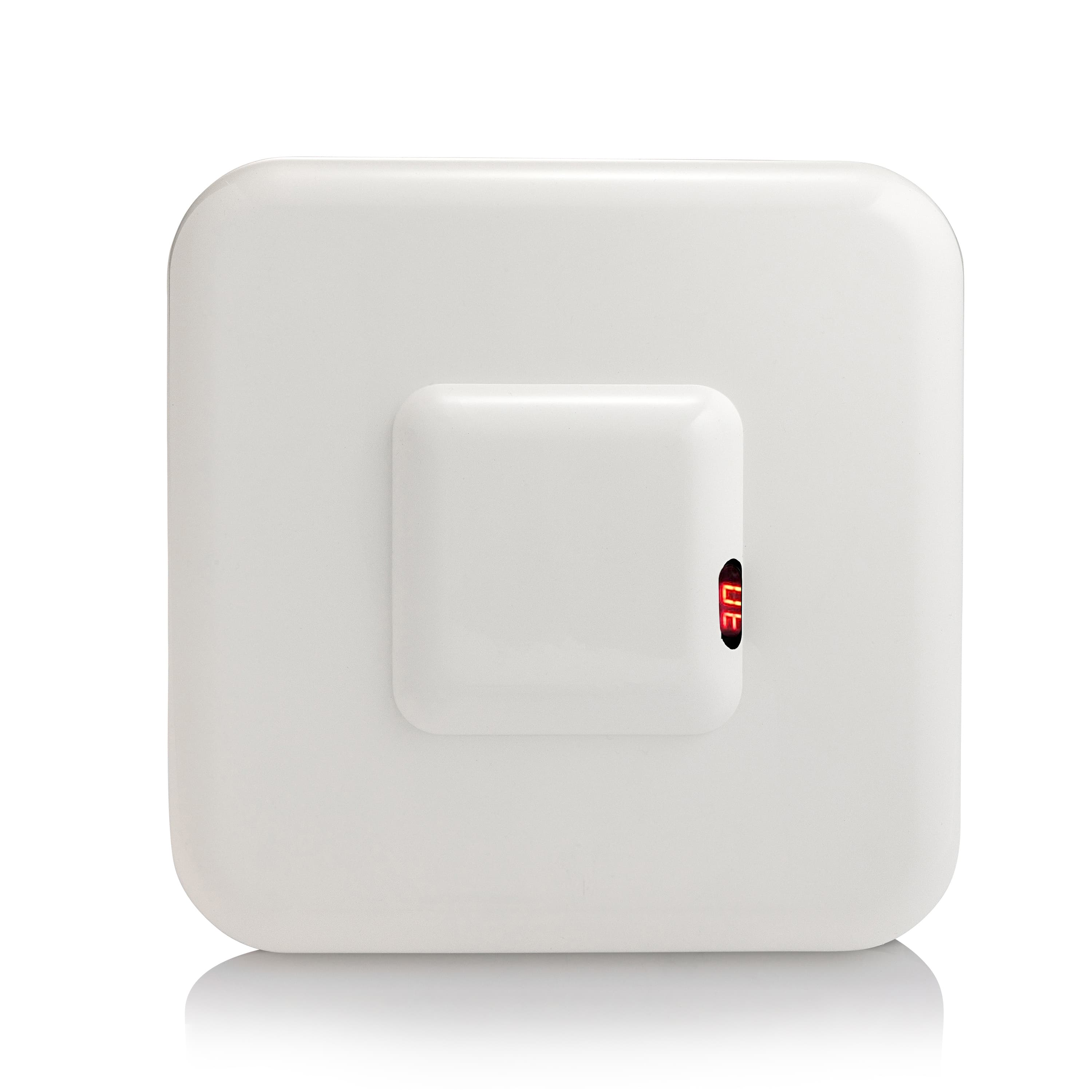

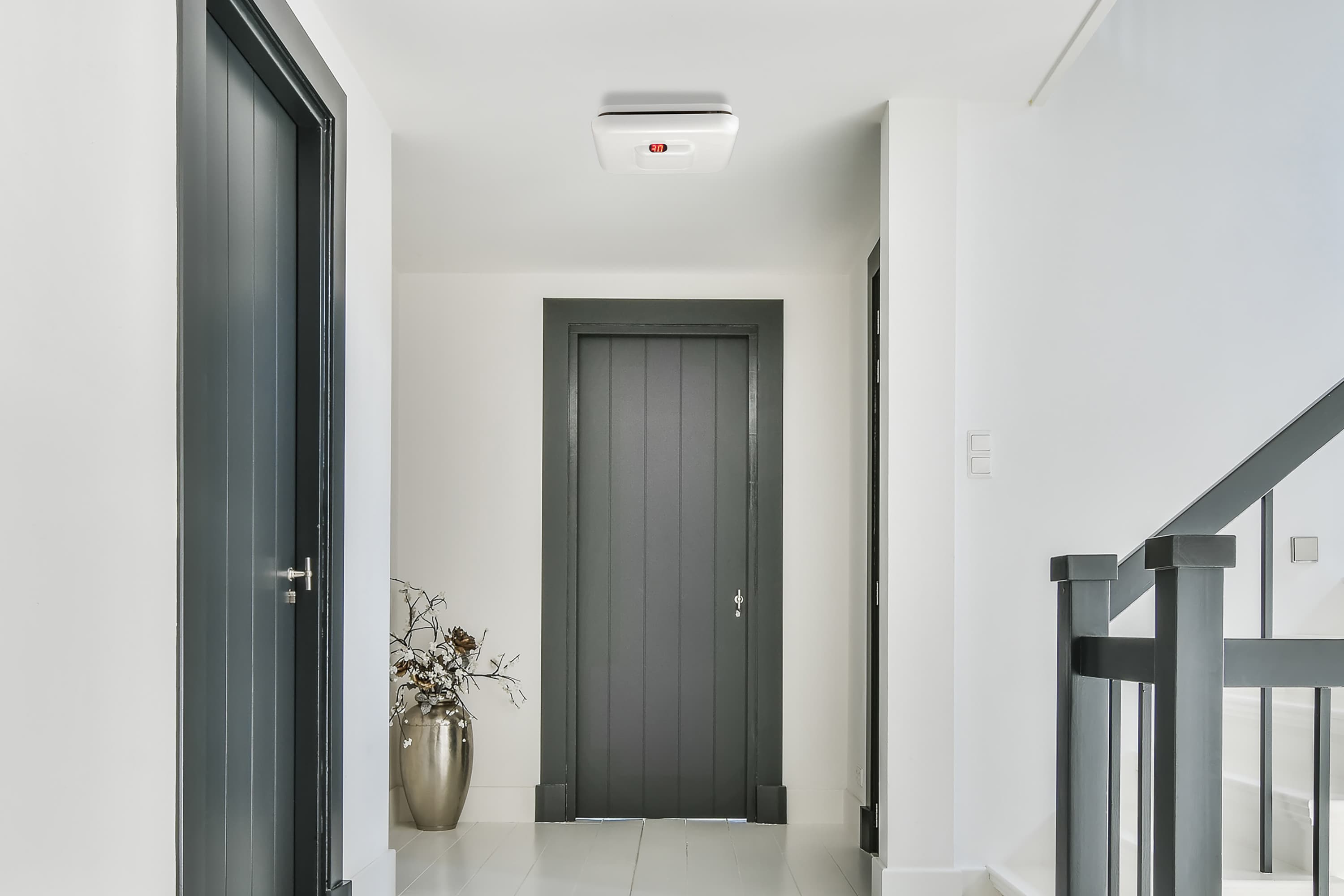

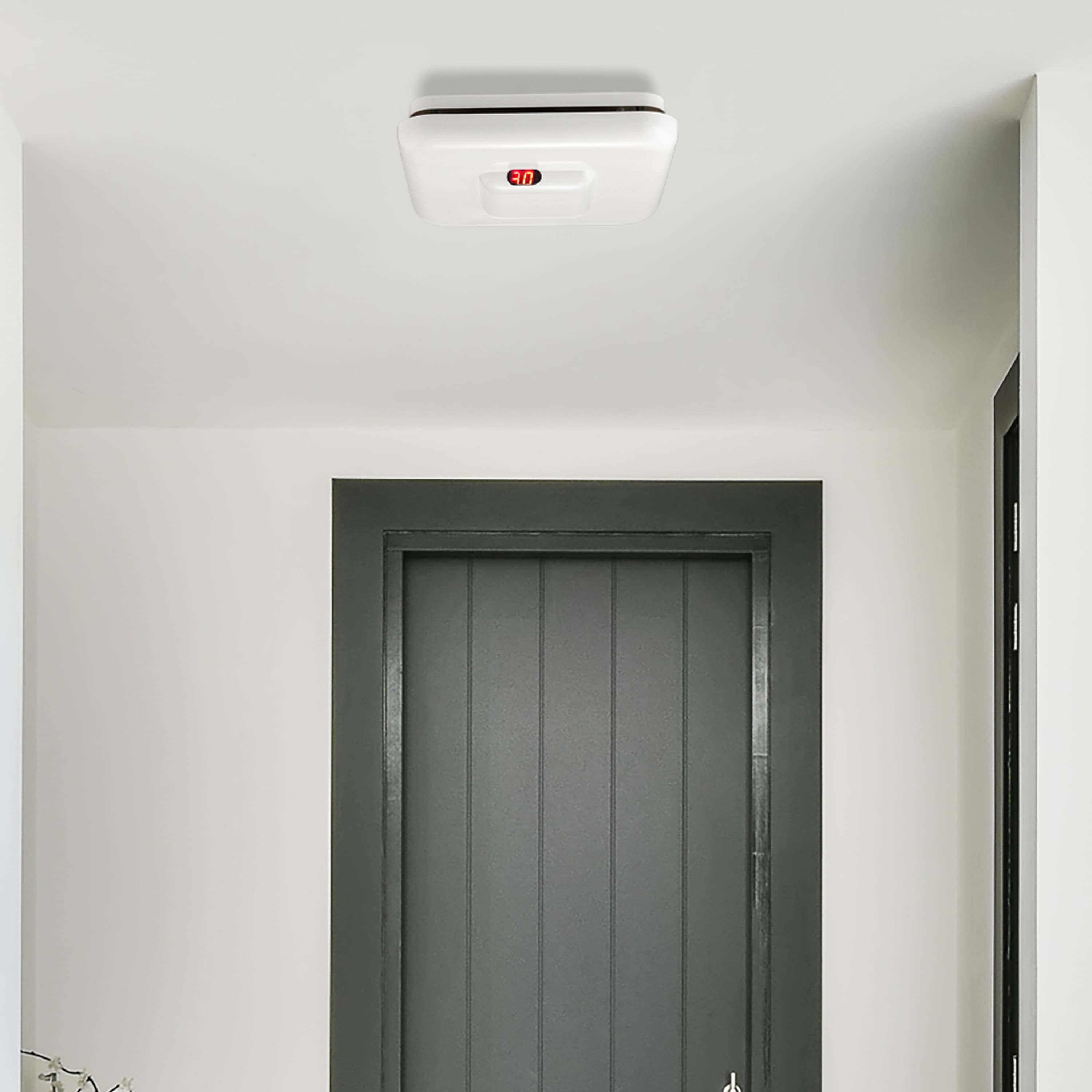

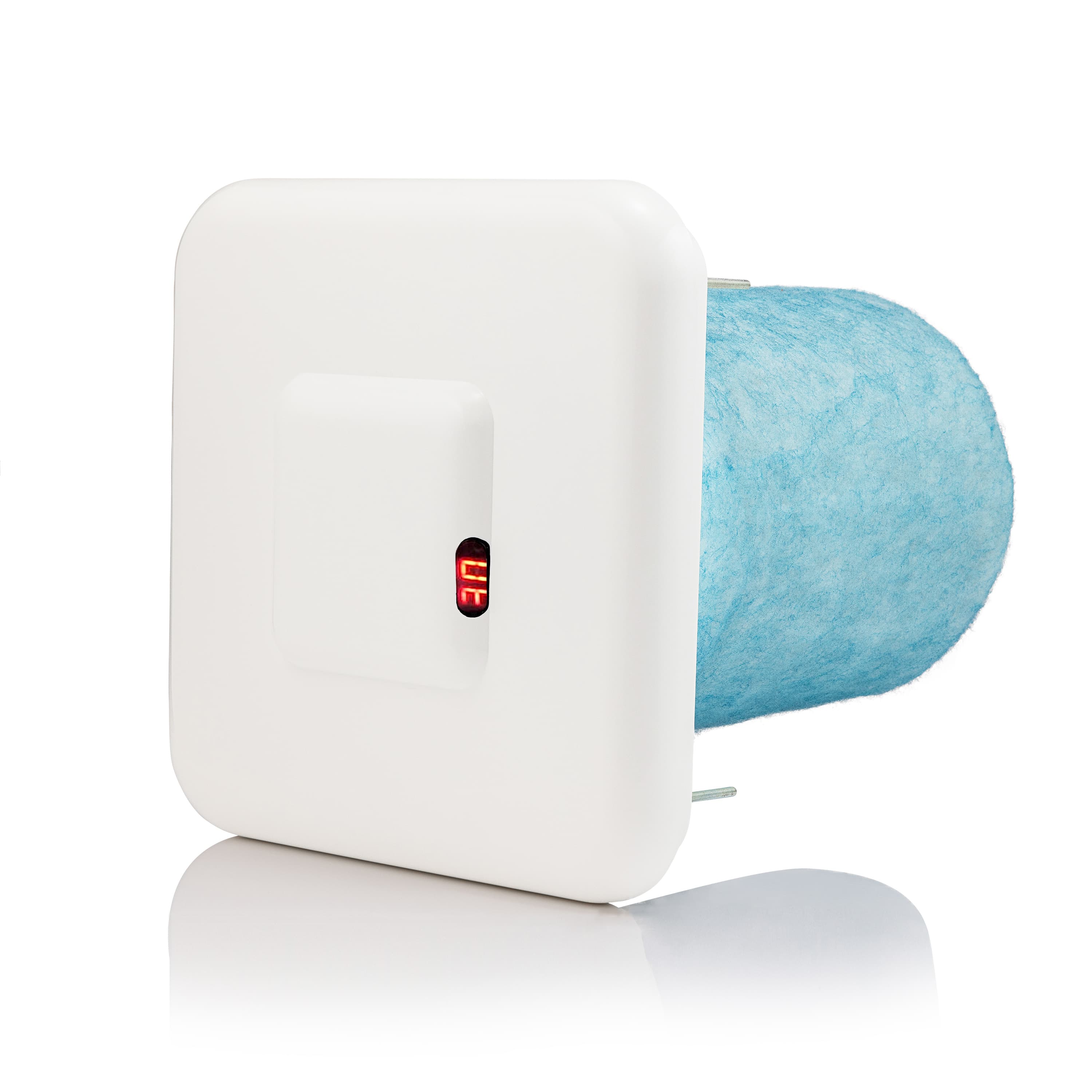

All you see is a slim, unobtrusive louvre, not a large piece of machinery that takes up floor space and has to be moved around

The system ventilates the home from within, thereby eliminating the need to open windows.

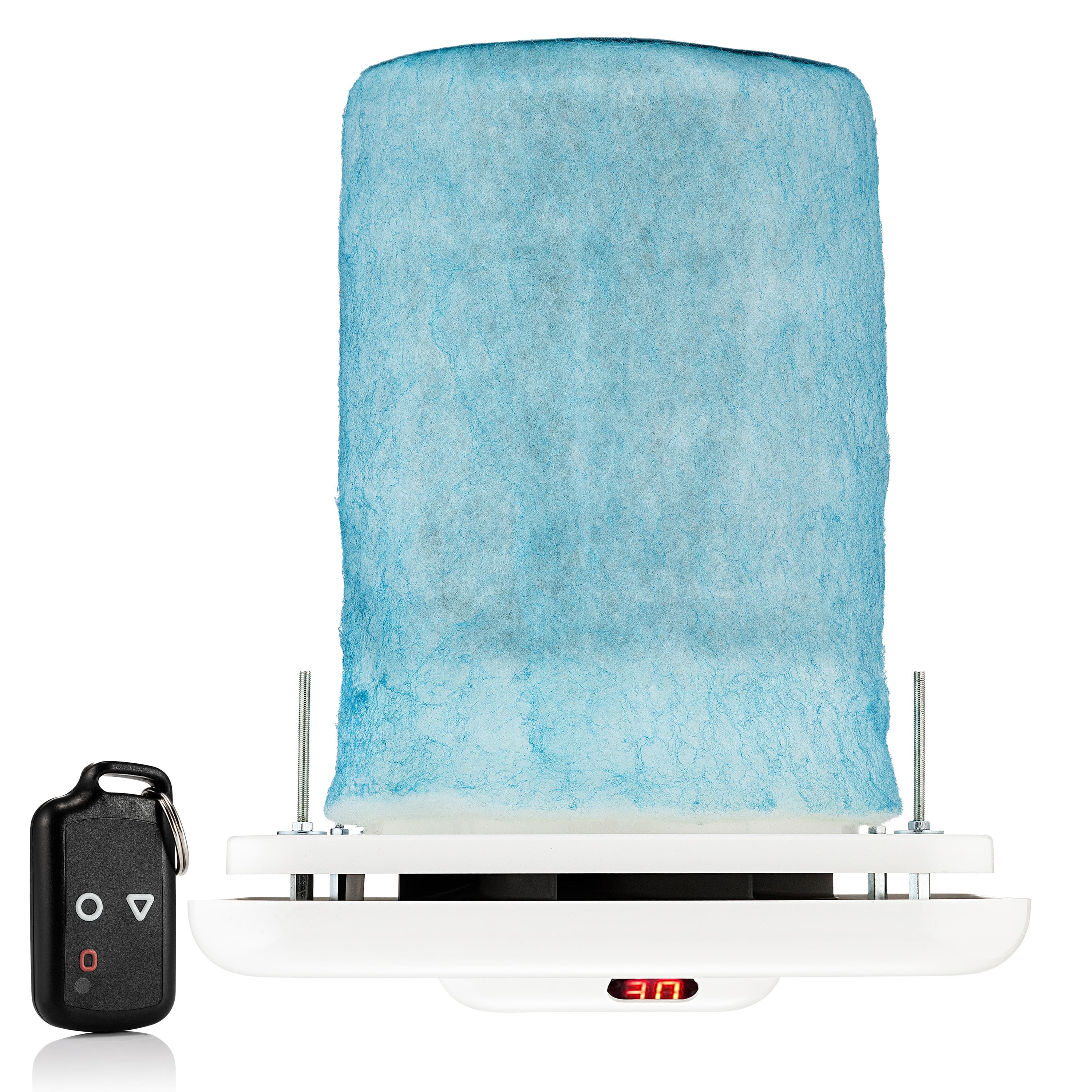

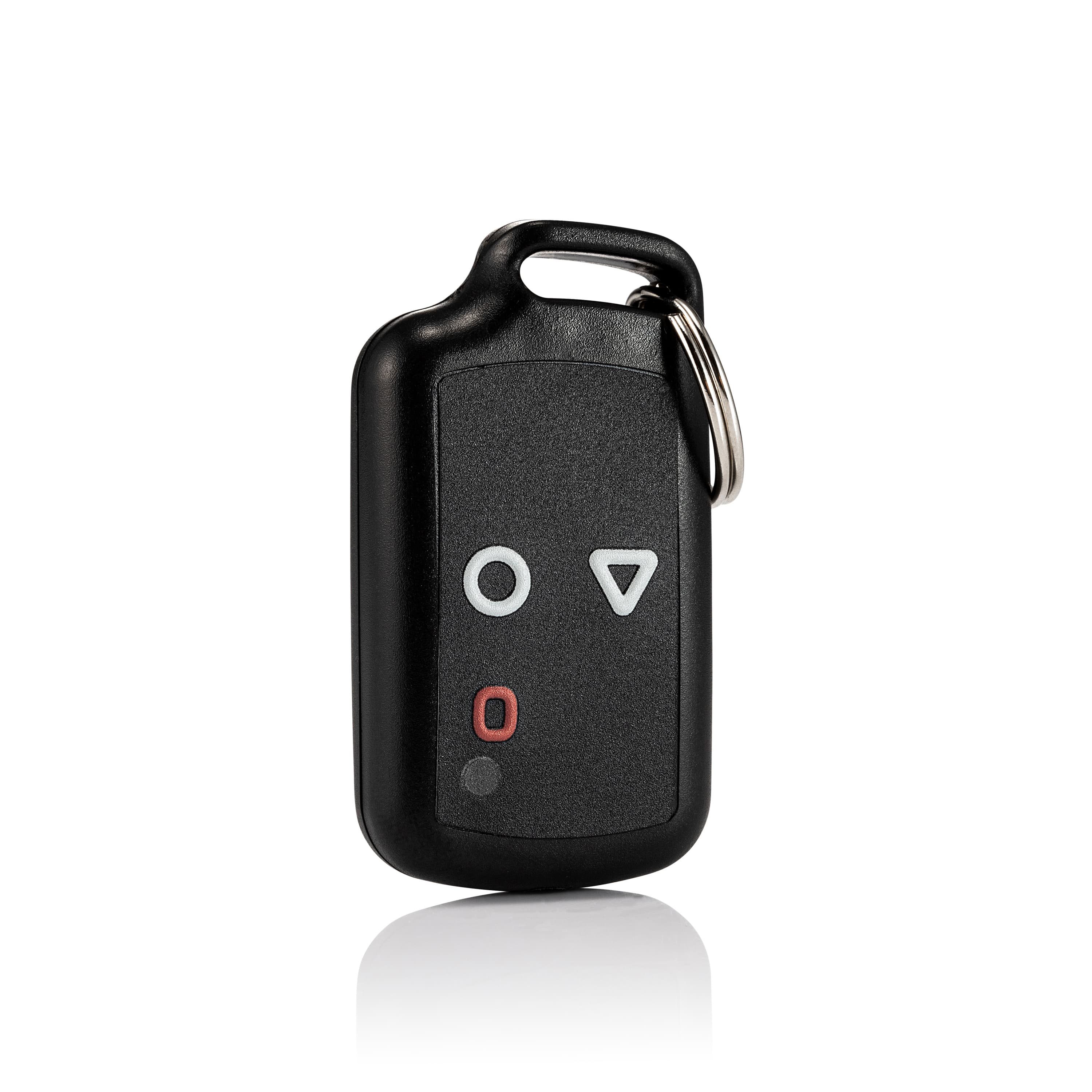

REMCON customers can regulate the level of ventilation required throughout the home via a new 99 speed infra-red remote control.

These advances allow home owners to choose the desired amount of ventilation required, thereby creating a cleaner, fresher home.

REMCON Unit Settings

The REMCON unit is CE marked and fully complies with Part F of the 2010 Building Regulations. Below is a table which will explain what the recommended air flow rates are, for properties ranging in size from 1 to 5 bedrooms

Number of Bedrooms	Approx. suggested setting	Litres per second	RPM
1	10	12	500
2	20	16	600
3	30	20	700
4	40	24	800
5	50	28	900

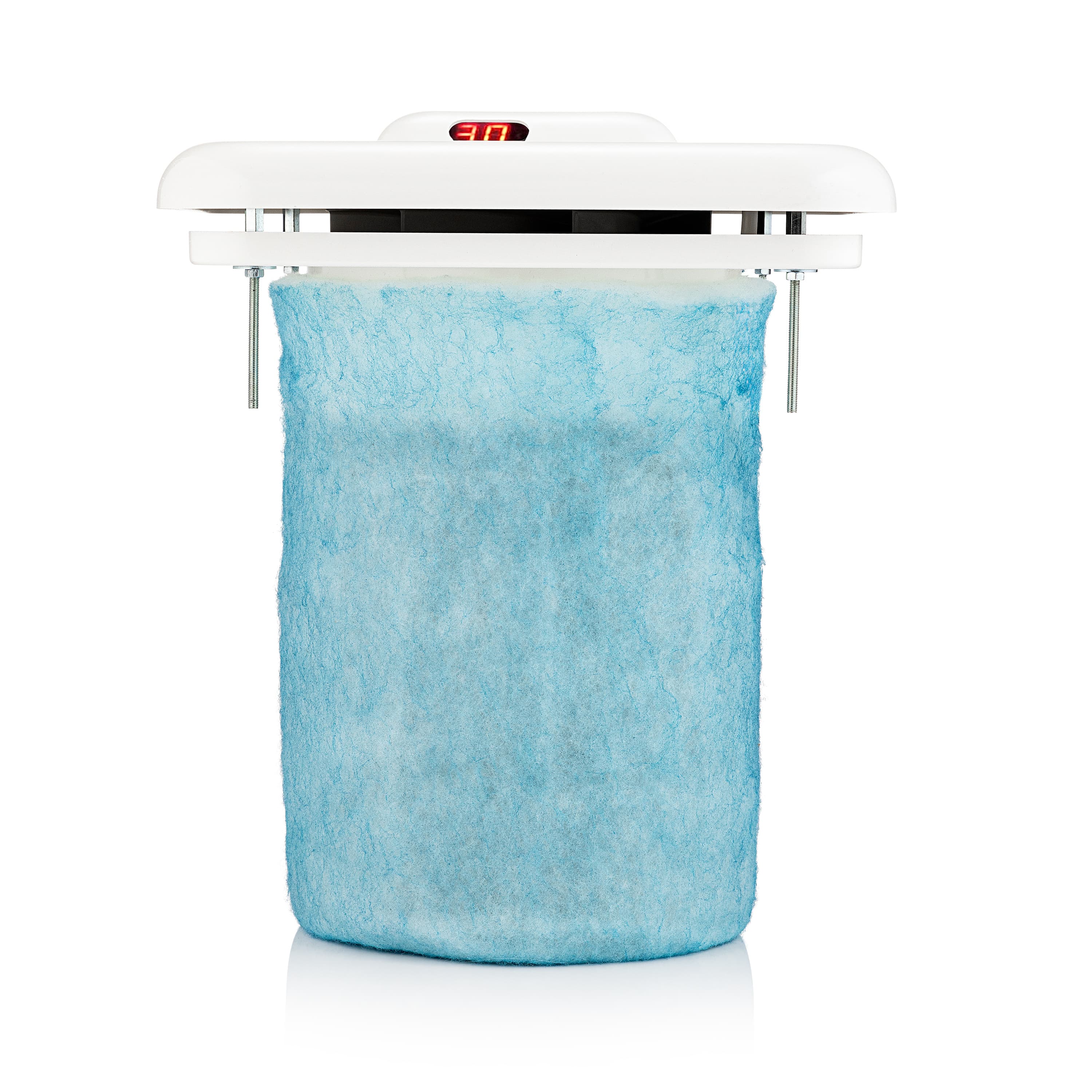

The unit is factory preset on 30, which is the suggested setting for a three bed property. The settings are approximate because the beauty of the REMCON unit is that with 99 settings it can be fine tuned to suit each individual property.

REMCON Technical Information

Some technical specifications are listed below. Feel free to Contact Us for any other information you may need

Number of Settings	99
Voltage	240V
Power	22 Watts
Sound Level	40 dBA

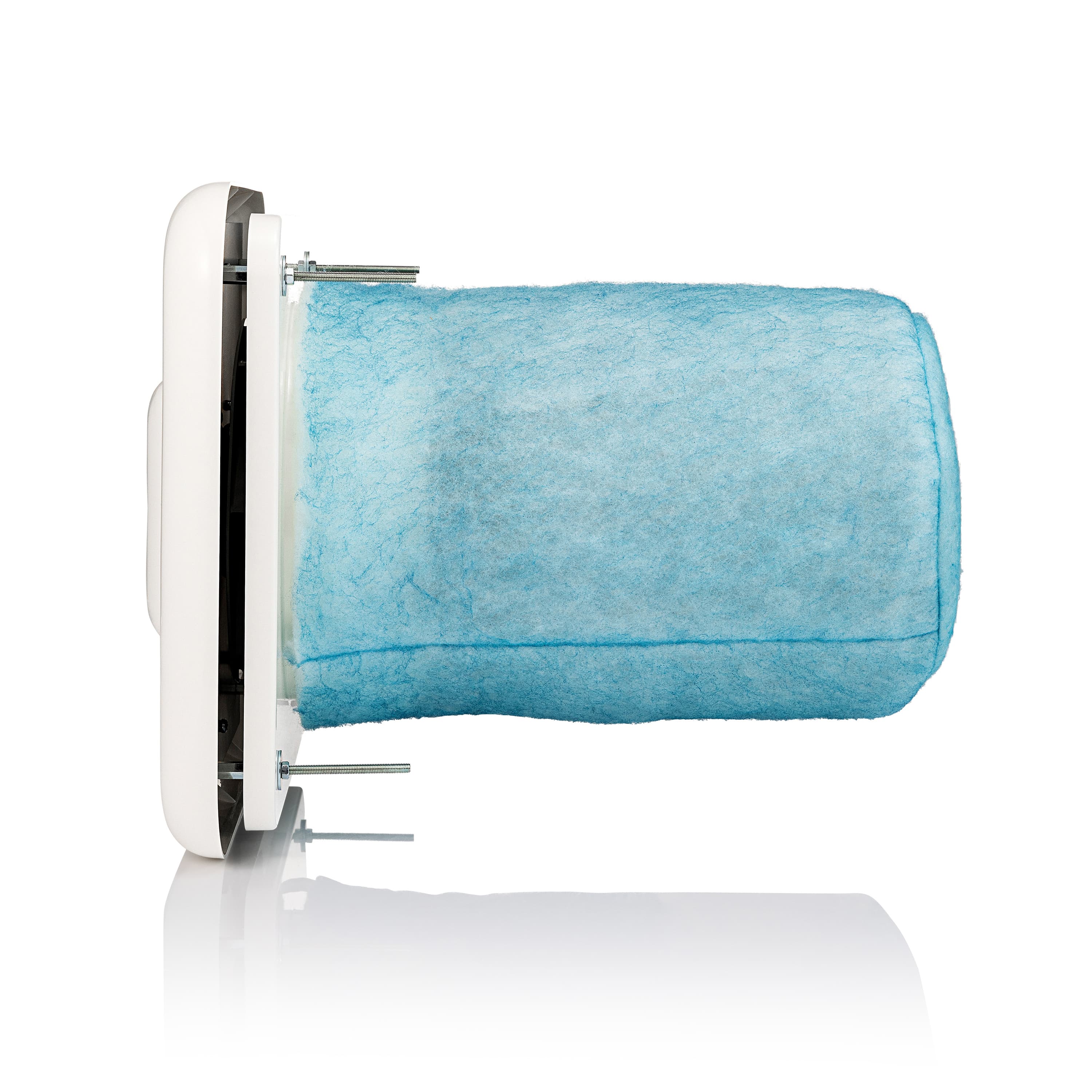

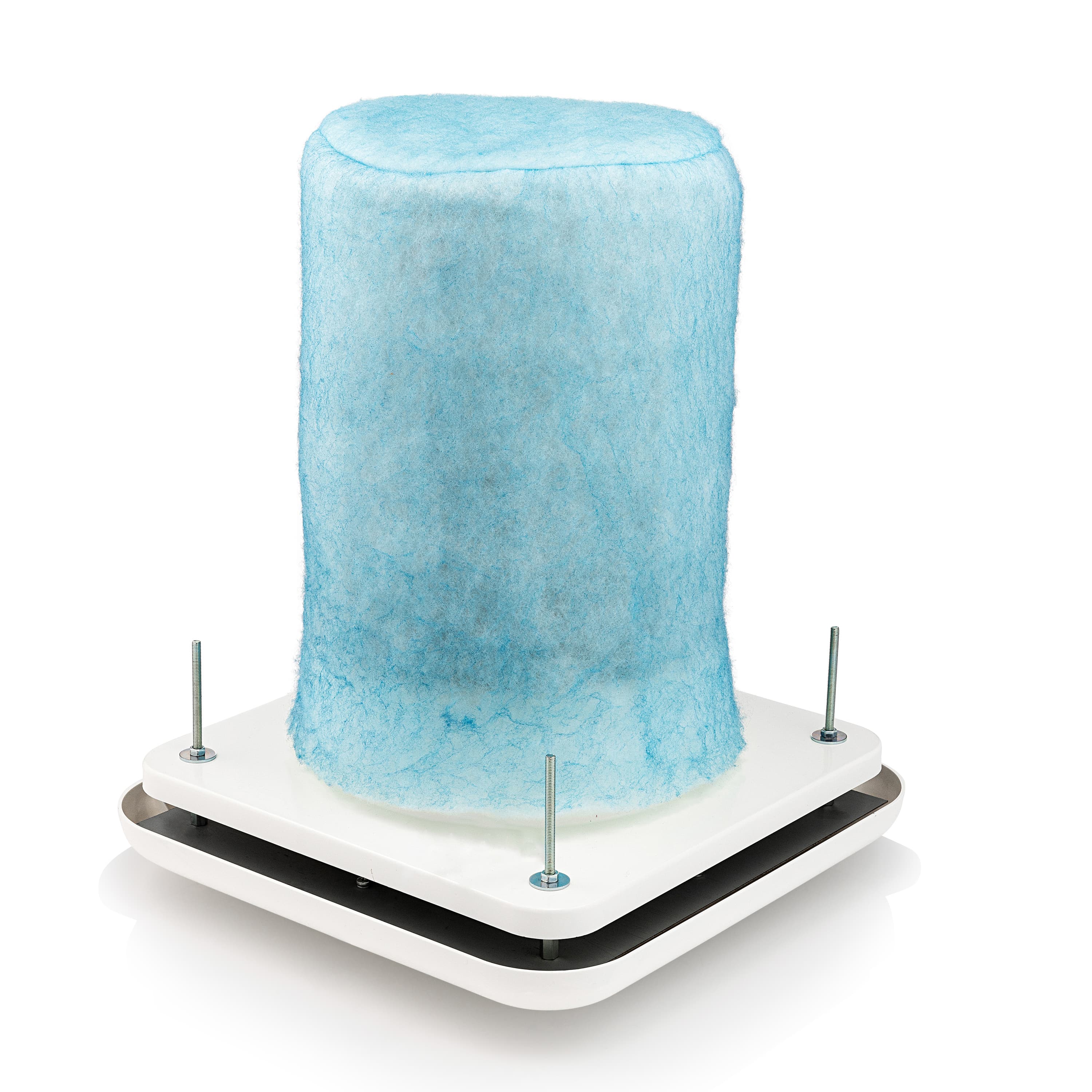

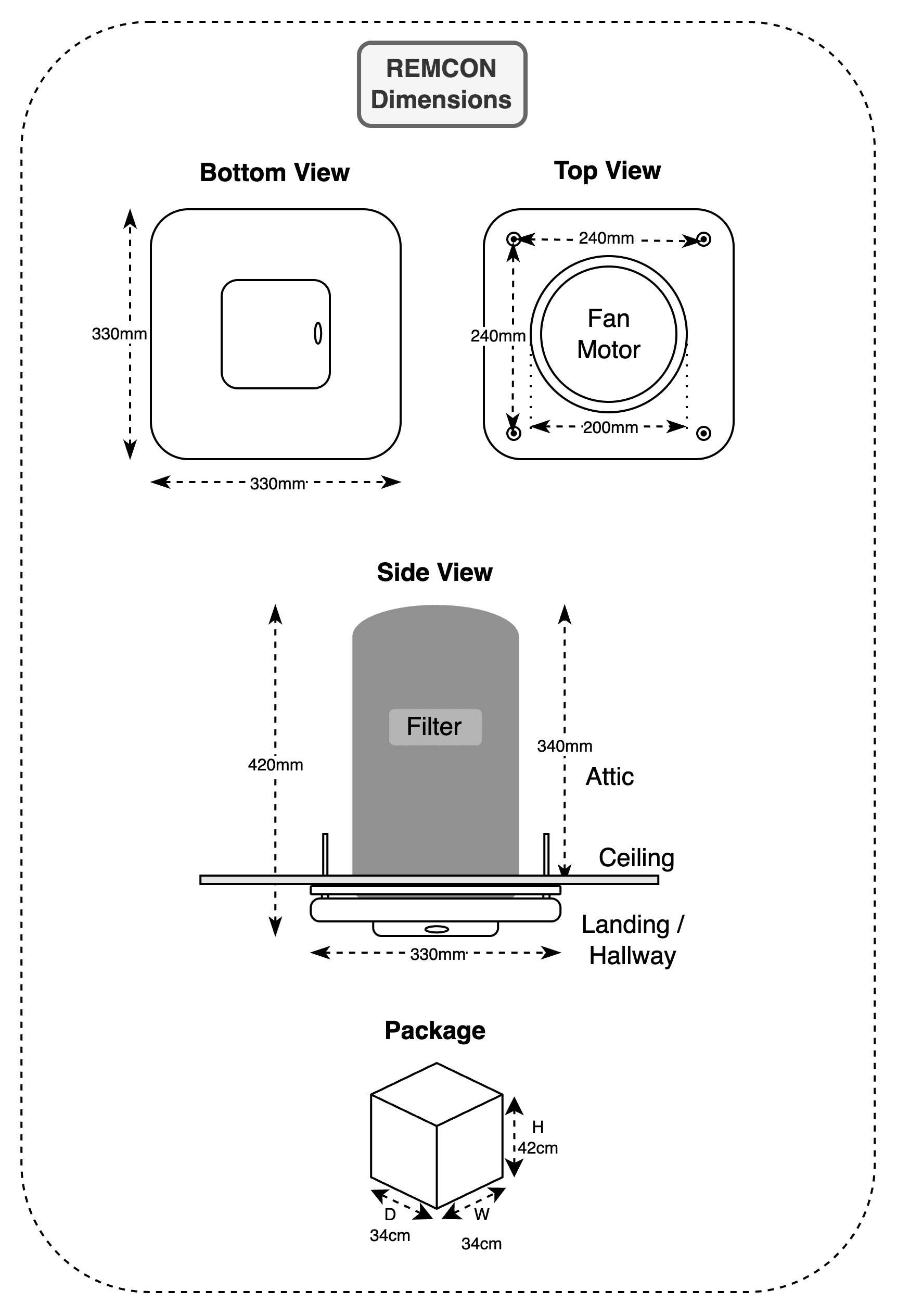

Dimensions	Approx 33L x 33W x 30H (cm) (see diagram opposite for full details)
Net Weight	3 Kg
Colour	White

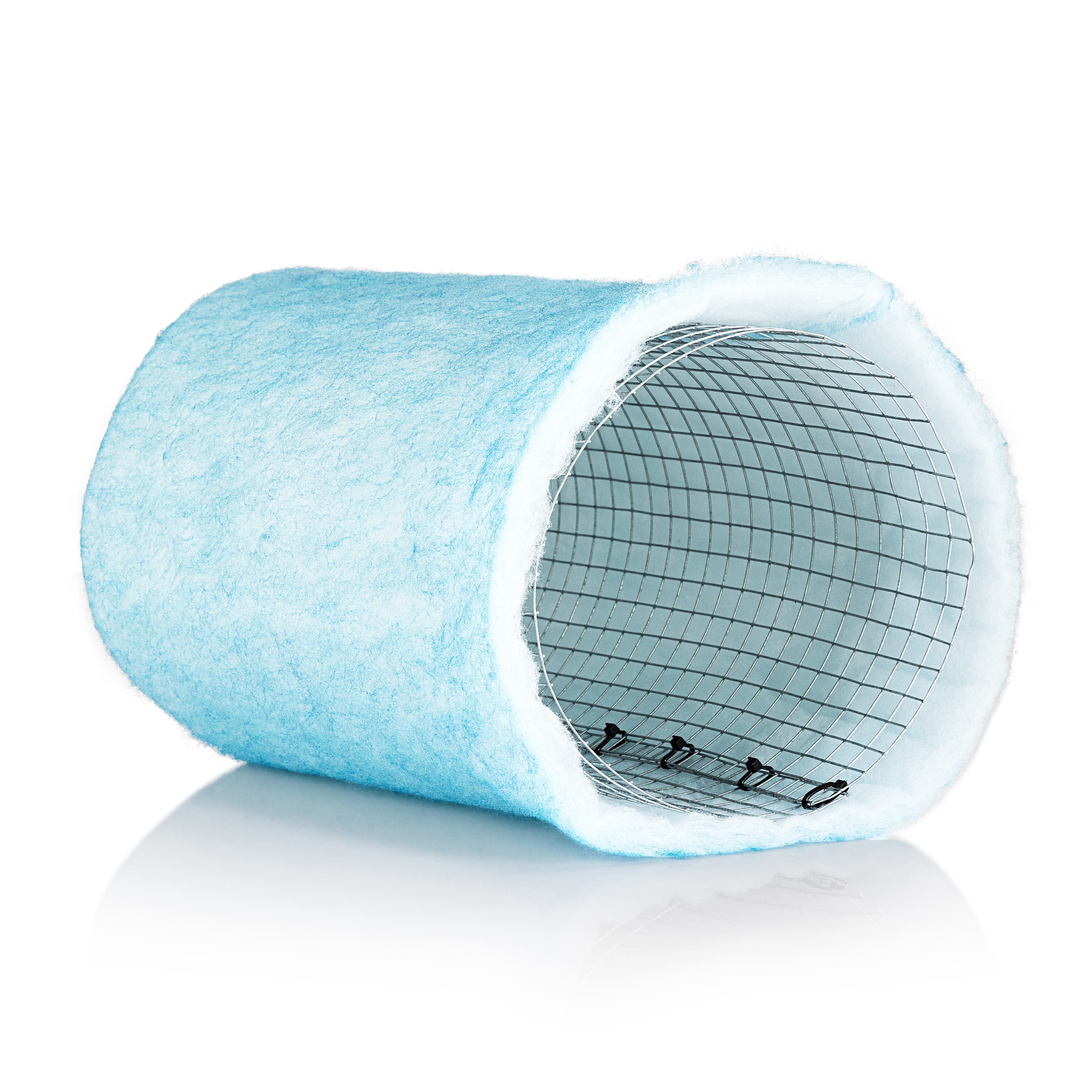

Filter Grade	G4
Remote Control Battery (included)	12V 23A / A23

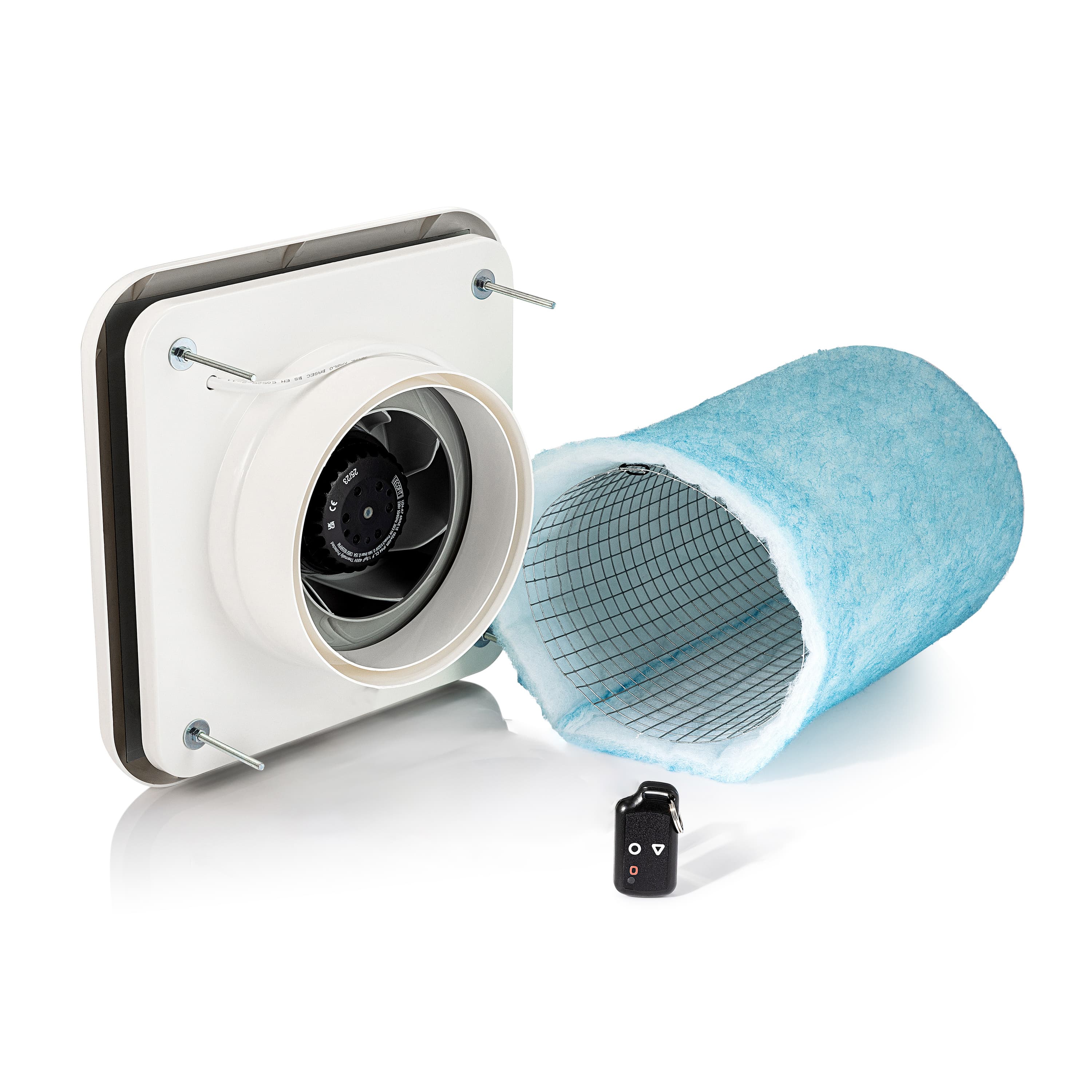

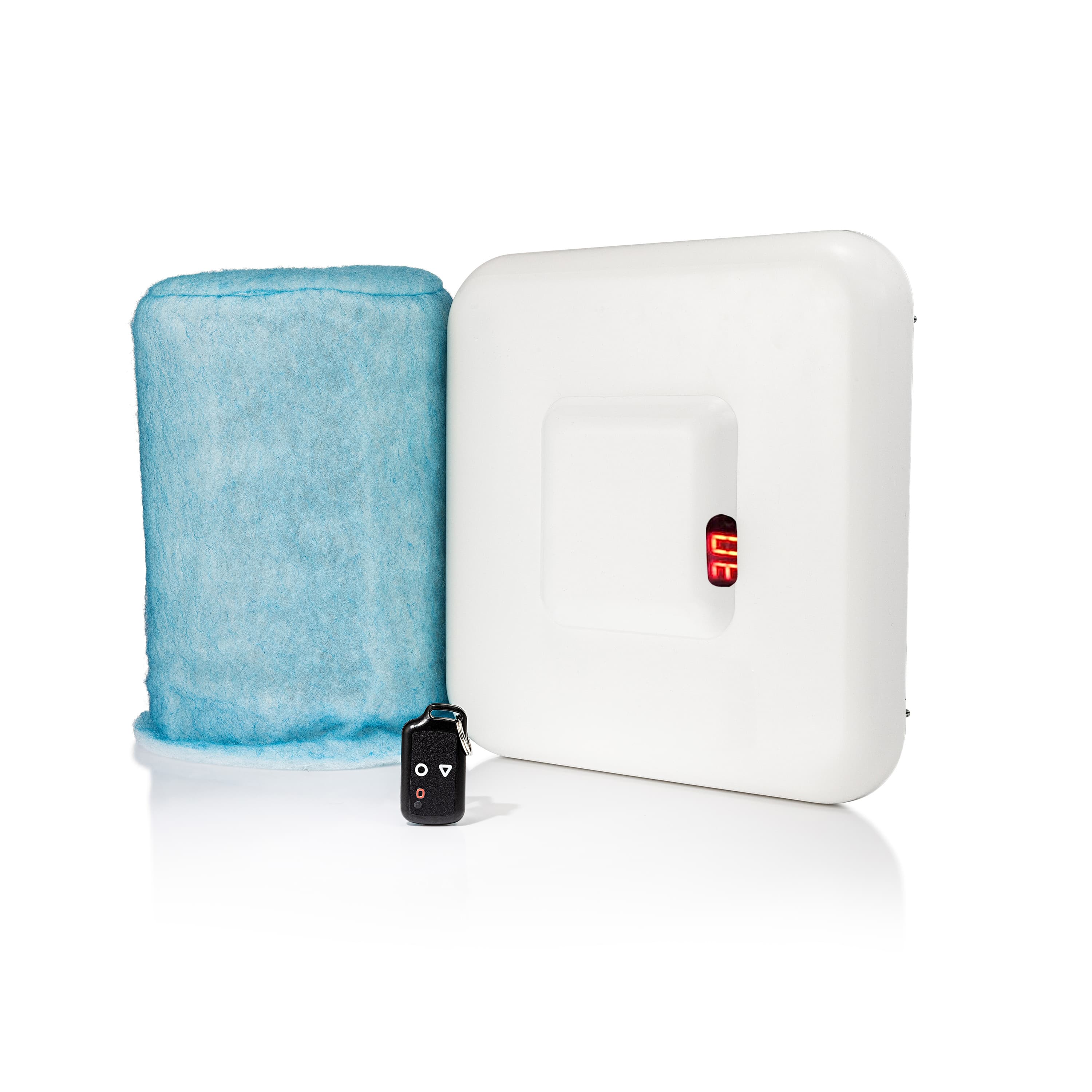

Package Contents	1 Remcon, 1 Remote, 1 Filter, 1 Fixing Kit, 1 Installation Template, Full Installation Instructions

Electrical information The unit can be wired in one of two ways:

By spurring off the existing lighting circuit via a 5-amp fused spur. The lighting circuit must be earthed and the unit must be wired by a qualified electrician.
By plugging into an existing attic socket via a 5-amp fused plug.

Note: One 5-amp fuse is enclosed in the fixing kit.
